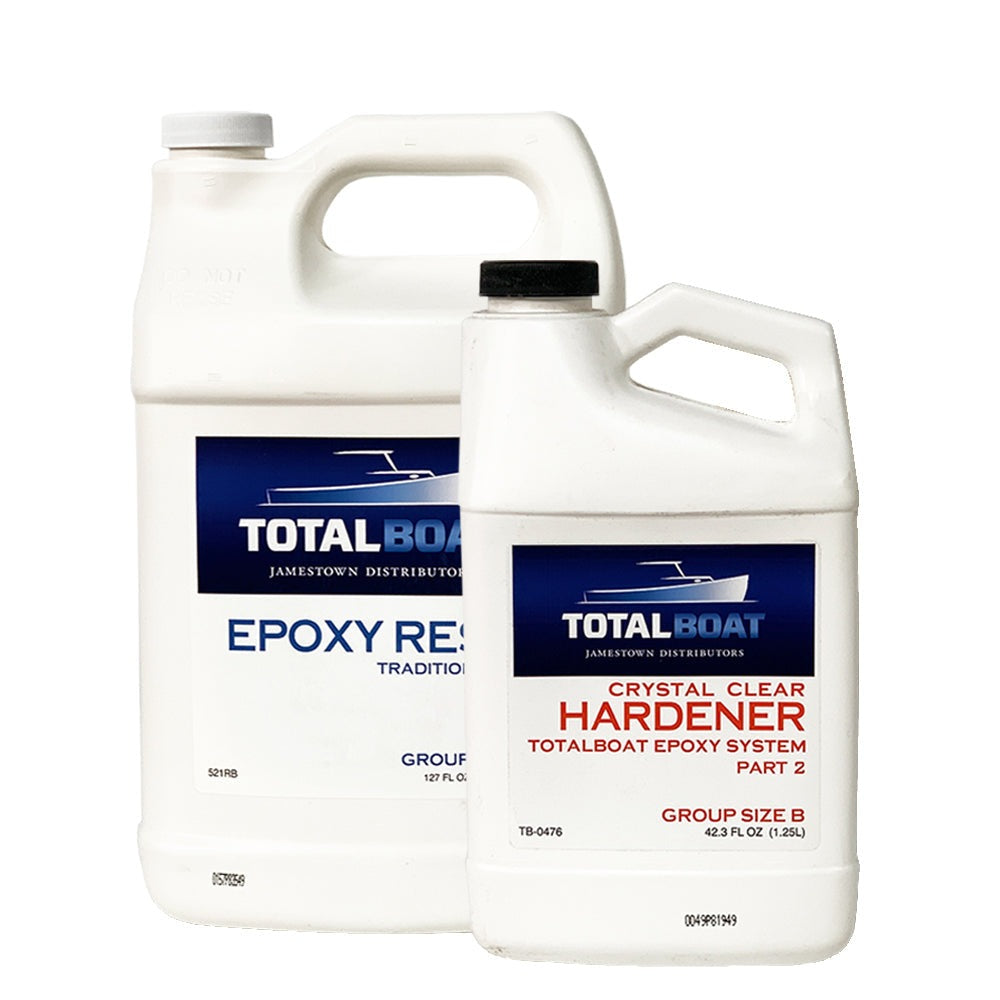

• TotalBoat Crystal Clear Epoxy Kits Gallon

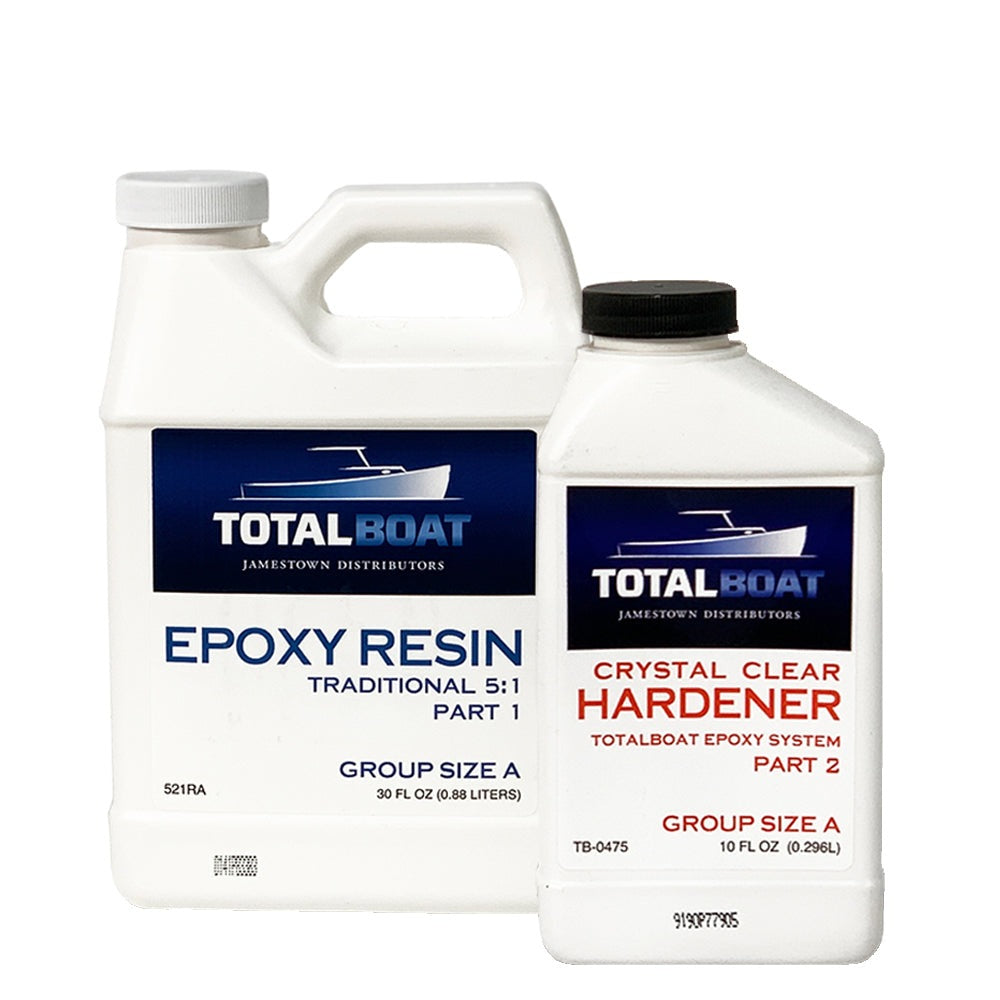

  • TotalBoat Crystal Clear Epoxy Kits Quart
1 / 2
Security Icon

IDEAL FOR CLEAR COATING APPLICATIONS

Great for building wooden canoes, kayaks and boats with a beautiful, clear finish.
Security Icon

PACKAGED IN A CONVENIENT KIT

Kit includes TotalBoat Traditional Epoxy and TotalBoat 3:1 Crystal Clear Hardener.
Security Icon

SPEND LESS TIME MAKING BEAUTIFUL BRIGHTWORK

Use Crystal Clear Epoxy for the build coats, instead of varnish. Less labor, less varnish, less maintenance.
Security Icon

EASY TO DISPENSE WITH TOTALBOAT 3:1 PUMPS

Just one full pump on the resin and one full pump on the hardener provide the precise mix ratio volume.

Crystal Clear Epoxy Kits

Crystal Clear Epoxy Kits

SKU: 496597
Crystal Clear epoxy is perfect for layup and coating applications showcasing a natural wood finish, as on wooden canoes and kayaks. Kits feature our Traditional Epoxy Resin paired with a special 3:1 Crystal Clear hardener.
Size: Gallon Kit
$139.99
Free Shipping On All Orders
Security Icon

IDEAL FOR CLEAR COATING APPLICATIONS

Great for building wooden canoes, kayaks and boats with a beautiful, clear finish.
Security Icon

PACKAGED IN A CONVENIENT KIT

Kit includes TotalBoat Traditional Epoxy and TotalBoat 3:1 Crystal Clear Hardener.
Security Icon

SPEND LESS TIME MAKING BEAUTIFUL BRIGHTWORK

Use Crystal Clear Epoxy for the build coats, instead of varnish. Less labor, less varnish, less maintenance.
Security Icon

EASY TO DISPENSE WITH TOTALBOAT 3:1 PUMPS

Just one full pump on the resin and one full pump on the hardener provide the precise mix ratio volume.
View full details
Description

This choice is as clear as clear can be

If you’re logging serious hours constructing a kayak, stripper canoe, or stitch-and-glue pram — and making it absolutely perfect in all its wood-grainy glory — don’t ruin all your hard work by finishing it wrong. Choose an epoxy/hardener combo that’ll really show off the natural beauty of your floating wooden wonder.

TotalBoat Crystal Clear Epoxy Kits are the clearest choice for making real wood look real good or showcasing the cool factor of carbon fiber fabrics. For coating applications, this crystal clear formula flows out and self-levels to penetrate and seal the wood, which helps prevent rot and hairline cracks in the grain (aka checking).

For layups, it wets out fiberglass and carbon fiber fabrics easily, requires less resin to fill the weave, and won’t turn cloudy or leave any messy blush to remove. It cures to a high-strength, moisture-resistant, exceptionally clear solid ready to finish with varnish or clear topcoats.

Enhance and extend the protection of clear finishes

A quality, UV-filtering varnish is good at protecting wood from sun damage, but by itself fails at keeping out moisture. It also has trouble adhering to wood that expands and contracts with seasonal changes in temperature and humidity. Eventually, the varnish will crack, look bad, and allow moisture and UV light to penetrate and do damage.

Apply Crystal Clear Epoxy to brightwork before varnishing or clear coating. It creates an effective moisture barrier, won’t shrink when it cures, and provides a stable base for the varnish to cling to so it’s no longer at the mercy of shifty wood. It also contains UV inhibitors that boost the UV protection of varnish and clear topcoats so they look better and don’t need to be maintained as often.

Get the glossy shine and UV protection of 8-12 coats of varnish on your brightwork — in less than half the time

Applying 12 coats of varnish on brightwork is a monumental task that can easily take three weeks or more — and that’s IF the weather cooperates.

For a shortcut that gives you the same look and UV protection, use Crystal Clear Epoxy instead of varnish for the buildup coats. You can get the buildup coats done in a single day, with 1 to 2 hours between coats. The next day, sand, wipe clean, and you’re ready to varnish. You’ll only need about three coats of a quality, UV-filtering varnish on top of the solid, Crystal Clear Epoxy base.

Get the job done in less than a week. And because the epoxy enhances the protection of any UV-blocking varnish and provides a stable base for it, the finish will last longer before you have to do any maintenance on it. Less labor, less varnish, and less maintenance in the long run. More time to enjoy your beautiful boat.

Crystal Clear Epoxy Kit Details

  • Ultra clear, non-blushing marine epoxy system perfect for wooden boat, canoe, or kayak building.
  • Convenient kits contain everything you need for clear coating applications.
  • Use under varnish to seal & stabilize bare wood and eliminate varnish finish checking or rot.
  • Special UV inhibiting additives enhance and preserve varnish or other finish applied over Crystal Clear.
  • When used on bare wood, reduces number of varnish coats required to achieve professional results.
  • Non-blushing formula cures to an exceptionally clear, high-strength, water-resistant finish.
  • Viscosity of 5:1 resin and Crystal Clear Hardener is preferred for wetting out fiberglass and other fabrics.
  • Superior thin-film characteristics provide smooth flow-out and self-leveling ideal for laminating and coating.
  • Creates a strong filleting or fairing compound, or adhesive when combined with thickening agents.
  • Easy to measure by weight or by volume.
  • Apply to prepared wood, fiberglass, reinforcement fabrics, etched aluminum, and bare steel and lead.
  • Color: 5:1 Epoxy Resin (clear), Crystal Clear Hardener (clear)
  • System Sizes: Group Size A is the Quart Kit; Group Size B is the Gallon Kit
Group Size 5:1 Epoxy Resin Quantity Crystal Clear Hardener Quantity
Size A (Quart Kit) 30 fl. oz. 10 fl. oz
Size B (Gallon Kit) 127 fl. oz. 42.3 fl. oz.

Two ways to measure

  • By Volume: Measure THREE parts TotalBoat Traditional Epoxy Resin to ONE part TotalBoat Crystal Clear Hardener
  • By Pumps: Use the TotalBoat 3:1 Epoxy Pumps (sold separately) to dispense the resin and hardener in the precise proportions, by volume. All you have to do is apply one full stroke of the hardener pump for every one full stroke of the resin pump. The 3:1 mix ratio is preset and is required for a proper cure.
  • By Weight: Measure 100A:27B

After measuring, just give the mix a good stir for about two minutes to combine thoroughly before adding fillers or applying.

Important Safety Information

Always wear protective clothing and equipment to protect your eyes, skin, and lungs when working with TotalBoat Traditional Epoxy Resin and Hardeners. Personal protective clothing should include appropriate gloves, safety glasses or goggles, a proper respirator, and a proper apron or similar protective clothing.

SPECIFICATIONS

TECHNICAL DATA

APPLICATION DATA
  • Application: Brush, Roller, or Syringe; can also be poured and spread with an epoxy spreader
  • Application Temperature/RH: Minimum of 55°F, 0-90% relative humidity
  • Recommended Temperature for Dispensing by Pumps: 60-70°F
  • Application Film Thickness: Thin film to 1/8" @ 75°F
  • Pot Life (150g mass @ 75°F): 20 minutes
  • Working Time (Varies by Mass of Mixed Epoxy): 10-30 minutes @ 75°F
  • Set Time (Thin Film @ 75°F): 10-15 hours
  • Minimum Cure for Light Use (@ 75°F): 1-4 days
  • Clamp Time (Minimum, @ 75°F): 24 hours
  • Full Cure Time (For High Loads/Stresses @ 75°F): 3-5 days @ 75°F
  • Safety Information: Work in a well-ventilated area and wear proper personal protective gear, including protective eyewear, protective clothing, and suitable gloves
PHYSICAL DATA
  • Cured Color/Finish: Clear
  • Mix Ratio by Volume: 3A:1B (3 parts TotalBoat Traditional Epoxy Resin to 1 part TotalBoat Crystal Clear Hardener)
  • Mix Ratio by Weight: 100A:27B
  • UV Resistant: Yes (limited)
  • Tensile Strength: 9,500 psi
  • Compressive Strength: 12,000 psi
  • Flexural Strength: 14,800 psi
  • Volumetric Yield: 24 in³/lb
  • Hardness: 88 Shore D

YOU MAY ALSO LIKE

WHAT MOST PEOPLE ASK

FREQUENTLY ASKED QUESTIONS

  • Crystal Clear was originally developed back when TotalBoat offered only a 5:1 epoxy system. Our Crystal Clear Hardener is designed for use with our Traditional resin to provide a somewhat UV-resistant, non-blushing, clearer alternative to 5:1 systems, especially for laminating and coating applications such as wooden boat and kayak builds. Use on bare wood to reduce the number of varnish coats required to achieve professional finishes.
  • We know it’s a bit confusing! The Crystal Clear Hardener is used in a 3:1 (that is, 3 parts resin to 1 part hardener) ratio with our Traditional 5:1 ratio.
  • While Crystal Clear contains UV inhibiting additives, any project exposed to UV rays should be coated with varnish or polyurethane to prevent yellowing, checking, and chalking. This goes for both outdoor projects, and for interior use with indirect sunlight.
  • While it cures more clearly than 5:1, for the clearest possible finish, we recommend TotalBoat High Performance 2:1 Epoxy.
  • No, remove the varnish first. This epoxy should be applied under varnish to seal and stabilize bare wood and eliminate varnish finish checking or rot. When used on bare wood, it reduces the number of varnish coats required.
  • We do not recommend thinning Crystal Clear Epoxy. For sealing wood, we recommend TotalBoat Penetrating Epoxy. Crystal Clear (or any other TotalBoat epoxy system) may be applied over wood sealed with penetrating epoxy.
  • Yes. Crystal Clear epoxy is compatible with alcohol inks, mica powder pigments, and opaque liquid pigments.
  • You can sand it smooth and wet sand it with fine paper and then buff. It will have a little bit of shine, but may not be a real high gloss finish.
  • Yes, this non-blushing marine epoxy system is perfect for wooden boats, canoes, or kayak building.
  • Yes. However, Crystal Clear will have a viscosity higher than TotalBoat 2:1 High Performance or Penetrating Epoxy. You may find a thinner epoxy easier to use for such applications.
  • Crystal Clear Epoxy will be fully cured in 2-4 days at 75°F.
  • Pumps are pre-calibrated to work properly with each other. All you need to do is apply one full stroke of the hardener pump for every one full stroke of the resin pump.
  • There are three ways you can measure it. You can use the calibrated pumps, you can measure it by volume (three parts TotalBoat Epoxy Resin to one part Crystal Clear Hardener, or by weight (measure 100A:27B). Note: the mix ratio is different from Traditional 5:1 TotalBoat Fast and Slow Hardeners.
  • If stored properly, it can last up to a year.
