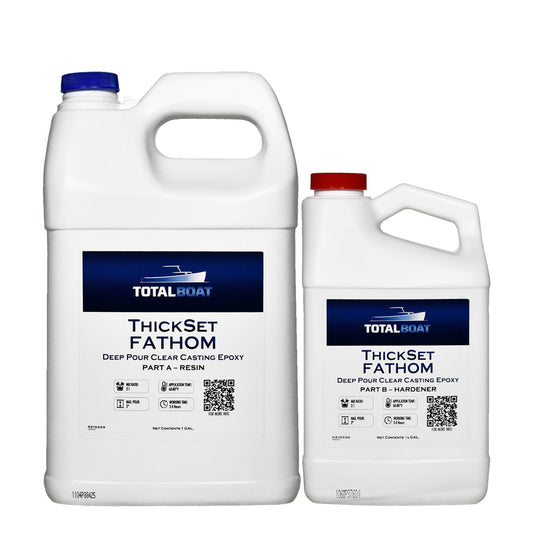

• ThickSet Fathom Deep Pour Clear Casting Epoxy 1.5 Gallon Kit

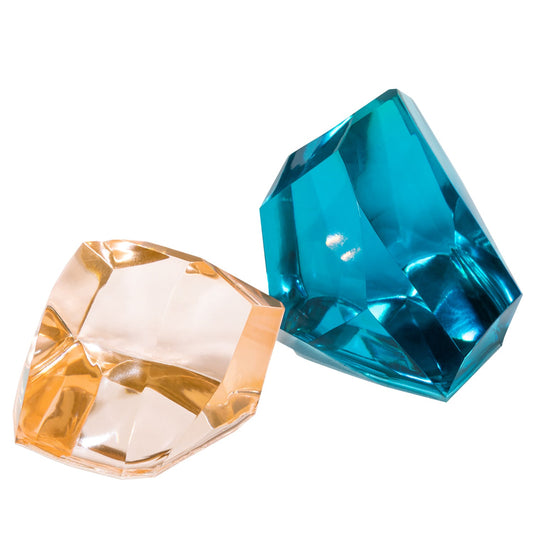

  • ThickSet Fathom Deep Pour Clear Casting Epoxy jewels

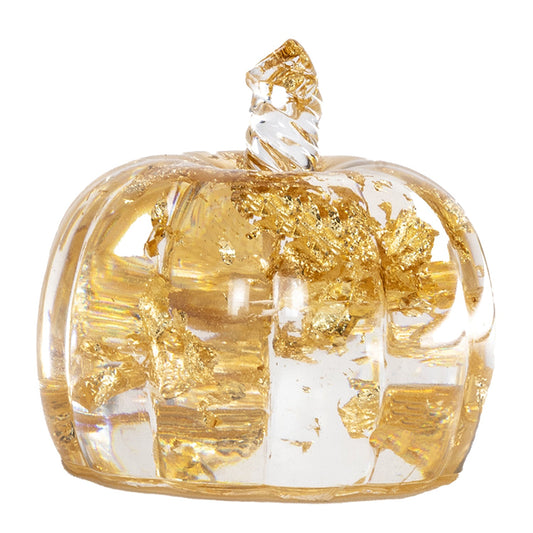

  • ThickSet Fathom Deep Pour Clear Casting Epoxy pumpkin

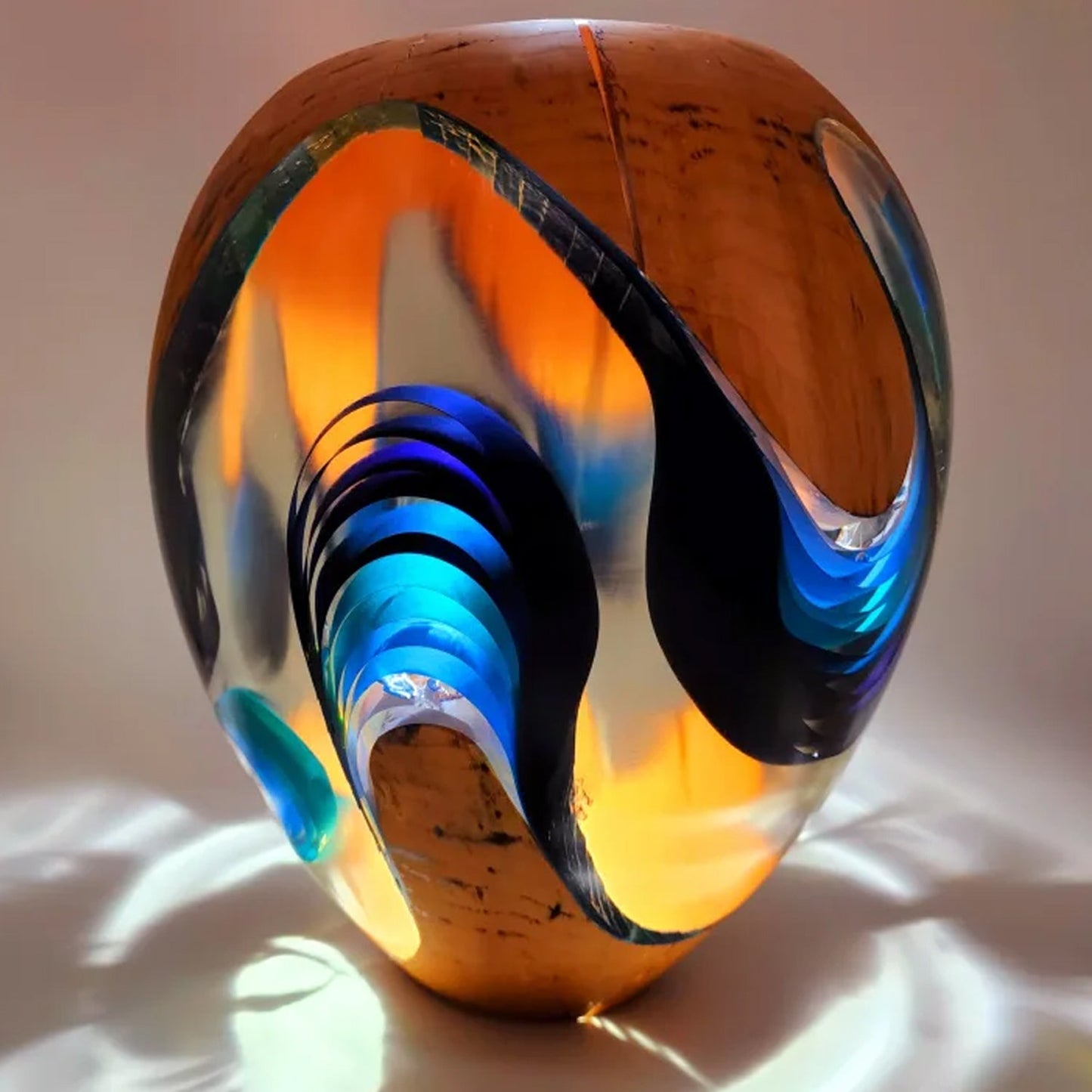

  • ThickSet Fathom Deep Pour Clear Casting Epoxy vase

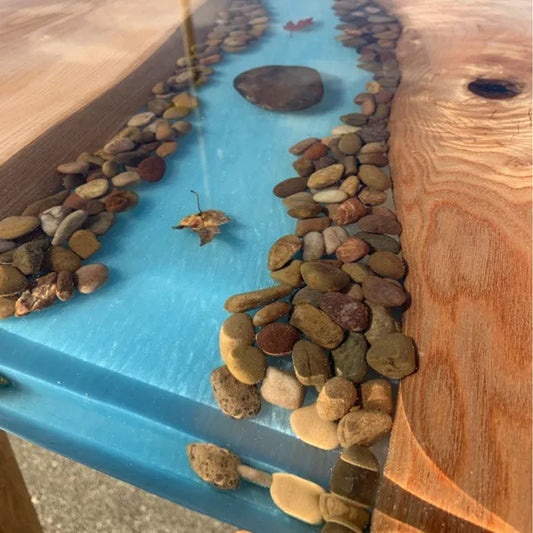

  • ThickSet Fathom Deep Pour Clear Casting Epoxy river table

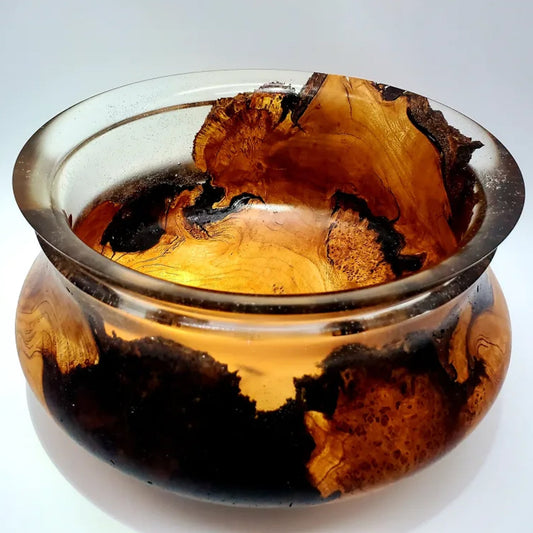

  • ThickSet Fathom Deep Pour Clear Casting Epoxy bowl

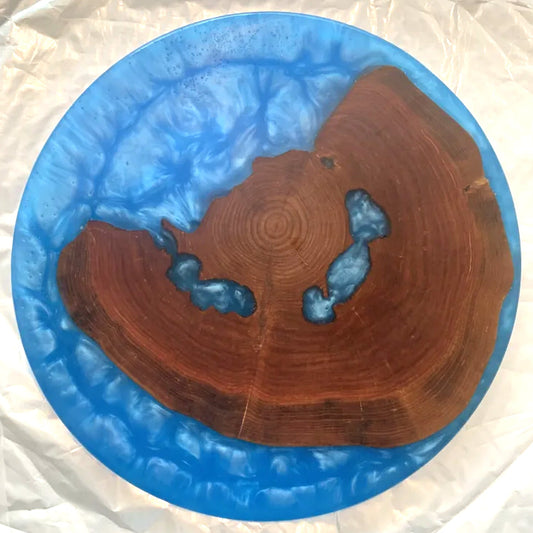

  • ThickSet Fathom Deep Pour Clear Casting Epoxy blue and brown art

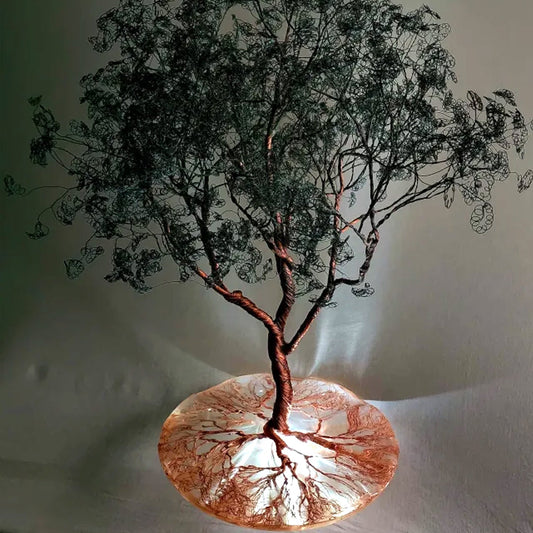

  • ThickSet Fathom Deep Pour Clear Casting Epoxy tree art

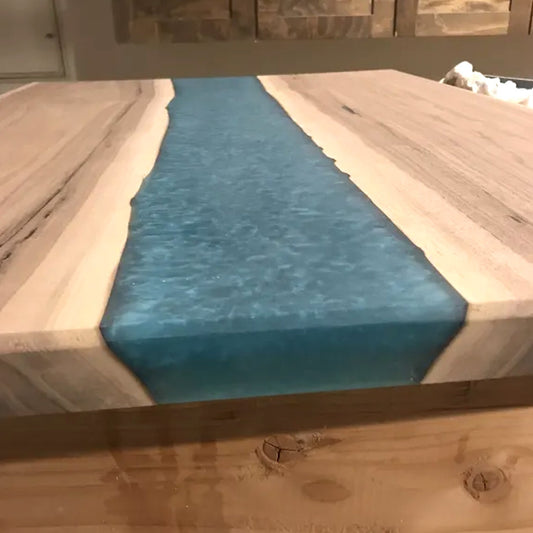

  • ThickSet Fathom Deep Pour Clear Casting Epoxy river table

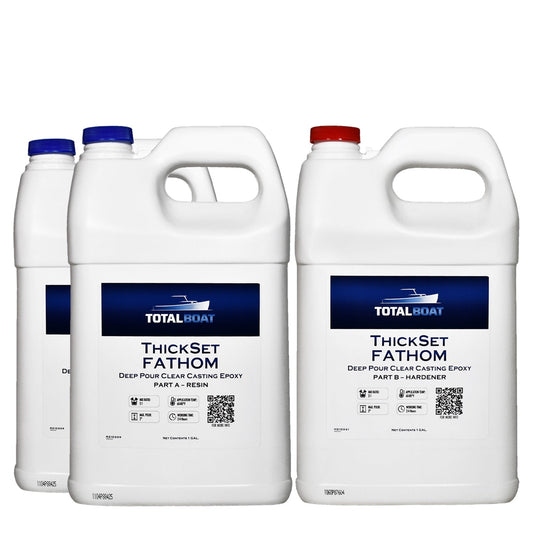

  • ThickSet Fathom Deep Pour Clear Casting Epoxy 3 Gallon Kit

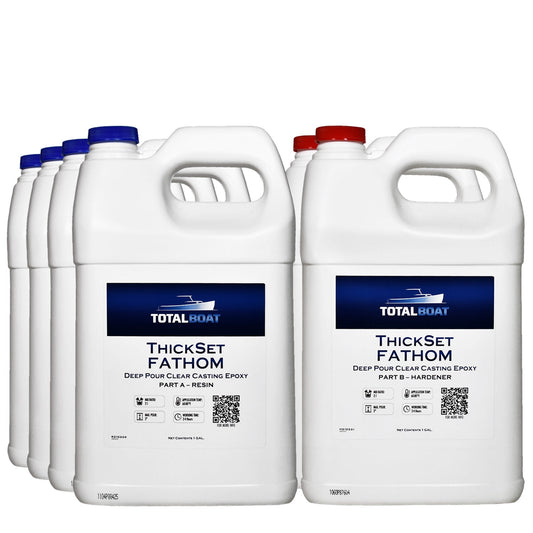

  • ThickSet Fathom Deep Pour Clear Casting Epoxy 6 Gallon Kit
1 / 11
Security Icon

POUR EPOXY UP TO 3" DEEP

Security Icon

ADD TINTS & ENCAPSULATIONS

Security Icon

IDEAL FOR DEEP RIVER TABLES & CASTINGS

Security Icon

SIMPLE 2A:1B MIX RATIO BY VOLUME

ThickSet Fathom Deep Pour Clear Casting Epoxy

ThickSet Fathom Deep Pour Clear Casting Epoxy

SKU: 520794
Two-part, crystal clear, deep pour epoxy system lets you pour deeper single layers than any other epoxy kits. Ideal for deep casting and molding applications, river tables, sculptures, live edge tables, slab pours and more. Pour layers of resin up to 3″ deep for casting applications, and up to 2″ deep for river tables and slab pours. This clear epoxy can be tinted with mica powder, alcohol inks, universal tints and pigment paste dispersions. Simple 2:1 mix ratio by volume. Cured surface is BPA-free & safer for surfaces that come into contact with food. PLEASE NOTE: ThickSet Fathom is an advanced deep pour epoxy system. Do not use in working temperatures above 80°F. Not compatible with 2:1 epoxy pumps.
$174.99 - $829.99
Size: 1.5 Gallon Kit
$174.99
Free Shipping On All Orders
Security Icon

POUR EPOXY UP TO 3" DEEP

Security Icon

ADD TINTS & ENCAPSULATIONS

Security Icon

IDEAL FOR DEEP RIVER TABLES & CASTINGS

Security Icon

SIMPLE 2A:1B MIX RATIO BY VOLUME
View full details
Description

When it pours, it reigns — deepest, clearest epoxy for large castings and slab pours

TotalBoat ThickSet Fathom is simply the best and deepest deep-pour epoxy for thick casting applications – pour single layers up to 3″ deep in prepared molds. Pour live edge slabs and river tables up to 2″ deep per layer. The thicker pour depths are possible because of the low amount of heat Fathom generates and the extremely slow cure time. But the beautiful results will be worth the wait! Especially with projects created using step pours, because each layer will meld seamlessly to produce a final piece that’s completely clear, without visible pour lines or cloudiness.

Extra long working time is ideal for large or complex epoxy pours

Once you mix ThickSet Fathom’s resin and hardener components, you have anywhere from 2-4 hours to pour it into your castings or molds. The working time depends on the volume of mixed epoxy you’re using, as well as the temperature of the air in your workspace – the ideal application temperature range is 60-80°F.

Use tints to change ThickSet Fathom from crystal clear to any color you want

ThickSet Fathom is water-clear right out of the bottle, but you can easily tint it with mica powder, alcohol ink pigments, universal tints, and opaque pigment dispersions. Just mix the resin and hardener together first, then mix in your epoxy-safe colorants.

ThickSet Fathom Details

  • Perfect for large casting projects, river tables and live edge tables.
  • Crystal-clear, low-viscosity epoxy resin casting system can be poured up to 3″ deep per single layer.
  • Extremely slow cure time allows thick pours up to three times deeper than traditional epoxy systems.
  • Ultra-clear, high-gloss finish resists scratches, stains and yellowing.
  • Simple 2:1 mix ratio makes it easy to get a proper cure.
  • Easy to tint resin with mica powder, alcohol inks, universal tints and pigment paste dispersions.
  • Self-leveling formula releases bubbles easily.
  • Low VOC and low odor make it ideal for indoor or studio use.
  • Can also be poured on prepared wood, concrete, metal, and stone surfaces to make unique table, counter and bar tops.
  • Kit sizes: 1.5 Gallon Kit, 3 Gallon Kit, and 6 Gallon Kit

Step Pouring ThickSet Fathom – How Long to Wait Between Pours

When pouring additional layers of ThickSet Fathom, it’s important to note the following:

  • When your project involves pouring multiple layers of ThickSet Fathom, it is extremely important to wait until the previous layer has cooled
  • sufficiently, to prevent surface distortion, yellowing, or other negative effects of excessive heat while curing.
  • Conservatively, the safest interval to wait is a minimum of 36 hours for ThickSet Fathom to cure prior to applying more, regardless of pour depth and ambient temperature.
  • For applications when it’s important to have the shortest interval for multiple pours, wait at least 24 hours, then use an infrared thermometer to measure the temperature at the center of the epoxy mass, where the highest temperature will be recorded.
  • Wait until the previous pour has dropped below 85°F, and the previous epoxy pour has firmed up enough that it will not distort when liquid epoxy is poured on it — it is likely that the previous layer will still be soft.
  • Always follow the maximum pour depth based on the volume of ThickSet Fathom.

Should I use TotalBoat ThickSet or ThickSet Fathom epoxy for my project – what’s the difference?

TotalBoat ThickSet and ThickSet Fathom epoxies are both crystal clear resin systems that can be poured deeper than traditional epoxy, and both are ideal for castings, river tables, and slab pours, but the main question is – how deep do you want to go? If it’s really deep, you want ThickSet Fathom because you can pour it in thicker single layers than ThickSet. The table below contains more information to help you decide which ThickSet formula is right for your project.

ThickSet ThickSet Fathom
Best Used For Smaller scale castings and pours; ideal for castings using less than 16 fl. oz. per pour Larger scale projects and castings using 1/2 to 1 gallon of mixed epoxy
Advantages Shorter demold time, shorter recoat time Deepest pour depth per layer, longer working time, fewer pours, easier mix ratio
Max Pour Depth Per Layer 1″ for smaller castings using less than 16 oz. of epoxy; 1/2″ for river tables, slab pours, live edge tables 3″ for larger castings, and up to 2″ deep for river tables, slab pours, and live edge tables
Working Time 45-60 minutes 2-4 hours
Demold Time 12-24 hours 48-72+ hours
Full Cure Time 5-7 days 5-10 days
Mix Ratio by Volume 3:1 2:1


Not sure how much ThickSet Fathom Deep Pour Clear Casting Epoxy you need? Try our simple epoxy calculator to determine how much resin your project will require.

SPECIFICATIONS

TECHNICAL DATA

APPLICATION DATA
  • Application Temperature/RH: 60-80°F, relative humidity 0-80%
  • IMPORTANT! Environmental conditions are extremely important to the clarity and quality of the cure. Depending on the mass of mixed epoxy used in a single pour, the pour depth, and the ambient temperature, excessive heat may build up from the reaction, causing potential yellowing, cracks, or other shrinkage. Helping to dissipate the heat may help promote the best results. For the epoxy to cure fully, the ambient temperature must be between 60°F and 80°F. When pouring for larger projects, such as slabs or tables, do not exceed a pour depth of 2" to prevent yellowing or excessive heat from the cure.
  • Seal Coat Application: Brush. When applying to wood or porous surfaces, be sure to apply a very thin skim coat of epoxy to seal the surface, and allow it to cure before applying more epoxy.
  • Maximum Pour Depth per Layer: 2" for river pours and slab pours; 3" for larger castings using less than 1 gallon of mixed epoxy.
  • Working Time: 2-4 hours (depending on the mass of mixed epoxy)
  • Full Cure: 5-10 days (depending on the mass of mixed epoxy)
  • UV-resistant formula is not intended for outdoor applications with prolonged sunlight exposure.
  • Personal Safety: Work in a well-ventilated area. Wear gloves, eye protection, face protection, and clothing protection.
  • Shelf Life: At least one year after date of manufacture, if stored properly
PHYSICAL DATA
  • Cured Color: Crystal clear
  • Mix Ratio by Volume: 2A:1B (2 parts epoxy resin to 1 part hardener)
  • Volumetric Yield: 24.9in³ per pound (.75 square feet (at 3" thickness) per gallon of mixed product)
  • Coverage: 231 cubic inches per gallon of mixed ThickSet Fathom
  • Hardness: 83 Shore D
  • Do not place items hotter than 125°F on the cured surface.
HOW IT COMPARES
  • ThickSet Fathom Deep Pour Clear Casting Epoxy 1.5 Gallon Kit

    ThickSet Fathom Deep Pour Clear Casting Epoxy

  • Best for:
  • Cured color:
  • Mix ratio by volume:
  • Mix ratio by weight:
  • Maximum pour depth per layer:
  • Application temperature/RH:
  • Working time:
  • Full cure time:
  • BPA free?
  • UV resistant?
  • Units of measure:
  • THIS ITEM
  • ThickSet Fathom Deep Pour Clear Casting Epoxy 1.5 Gallon Kit

    ThickSet Fathom Deep Pour Clear Casting Epoxy

  • Best for: Larger projects and castings using a 1/2 gallon to 1 gallon of mixed epoxy
  • Cured color: Clear
  • Mix ratio by volume: 2A:1B
  • Mix ratio by weight: 100A:43B
  • Maximum pour depth per layer: 3" for larger castings, and up to 2" deep for river tables, slab pours, and live edge tables
  • Application temperature/RH: 60°F to 80°F; 0-80% RH
  • Working time: 2-4 hours
  • Full cure time: 5-10 days
  • BPA free? Yes
  • UV resistant? No
  • Units of measure: 1.5 Gallon Kit, 3 Gallon Kit, 6 Gallon Kit

YOU MAY ALSO LIKE

WHAT MOST PEOPLE ASK

FREQUENTLY ASKED QUESTIONS

  • ThickSet Fathom is ideal for live edge tables, river tables and large casting projects.
  • The maximum pour depth for castings using less than 1 gallon of epoxy is 3" per single layer; for slab pours and river tables, the maximum pour depth is 2". For best results, do not use ThickSet Fathom for pours less than 1″ deep as doing so will extend the required cure time.
  • For river tables, slabs and other large pours, do not exceed a pour depth of 2" to prevent yellowing, cracking or shrinkage. When the desired thickness is greater than 2", step pouring with multiple layers will achieve the best results. When doing step pours, allow a minimum of 36 hours cure time before applying another layer of ThickSet Fathom.
  • When doing thicker pours (any smaller castings up to 3", or larger slab pours up to 2"), it is strongly recommended to maintain 75°F or lower. For thinner pours (smaller castings under 1-½" or slab pours under 1"), it is recommended to use the product between 70-80°F. To help speed up the cure for all applications, you can increase the heat after the reaction reaches peak exotherm – up to 90°F.
  • Yes. Once the ThickSet Fathom Epoxy surface has cured completely, it is BPA-free, making it safer for potential contact with food.
  • TotalBoat ThickSet Fathom cures to a crystal clear finish that won’t yellow, but is not meant for continuous UV exposure. If your cured piece will be used outdoors, apply a UV-stable varnish or clear coat product, for maximum UV resistance and to avoid cloudiness or yellowing.
  • ThickSet Fathom can be tinted with a variety of epoxy-safe coloring agents, including mica powder, universal tints, pigment dispersions, and alcohol ink pigments. Mix the epoxy resin and hardener together thoroughly before adding tints.
  • The full cure time for ThickSet Fathom is 5-10 days, depending on the mass of mixed epoxy.
  • The minimum demold time for deeper or larger pours is 48 hours, and 72 hours for smaller pours. If the epoxy feels soft or rubbery at all, it is extremely important not to demold yet.
  • TotalBoat ThickSet Fathom can be machined or turned once it has cured completely (5-7 days at room temperature), and has developed its thermal properties and achieved full hardness. For best results, we recommend that you do a test before attempting it on your final project. If you’re looking for a crystal clear resin specifically for creating hybrid turning blanks, try TotalBoat Cast N Turn Clear Casting and Turning Urethane Resin.
  • ThickSet Fathom is meant to be dispensed, mixed and poured in large volumes, and is not compatible with TotalBoat 2:1 epoxy pumps or 2:1 metering pumps.
