MULTI-USE LIQUID FOAM
Flotation, soundproofing, thermal insulation, artEXPANDS RAPIDLY
Reaches full expansion in about five minutes.EASY TO USE
Simple 1:1 mix ratio, just measure, mix and pour.TWO FORMULAS
2 lb. Density and 6 lb. Density for a range of projects.2-Part Polyurethane Marine Flotation Foam

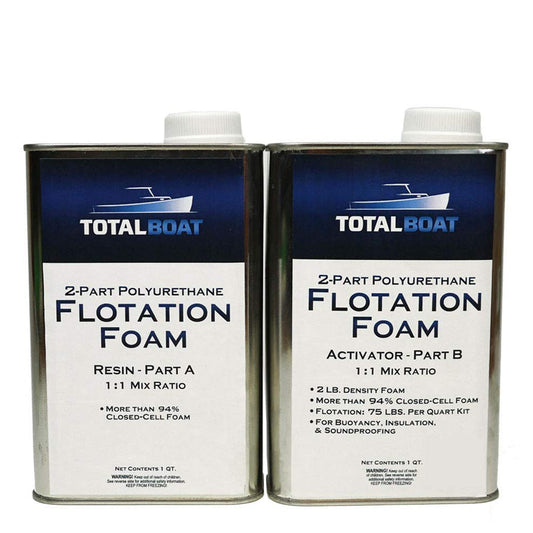

2-Part Polyurethane Marine Flotation Foam
MULTI-USE LIQUID FOAM
Flotation, soundproofing, thermal insulation, artEXPANDS RAPIDLY
Reaches full expansion in about five minutes.EASY TO USE
Simple 1:1 mix ratio, just measure, mix and pour.TWO FORMULAS
2 lb. Density and 6 lb. Density for a range of projects.TotalBoat Marine Flotation Foam is great for filling voids, especially under decks. It’s thermal and sound-proofing abilities make it ideal for a number of other insulation and flotation applications. 94% closed-cell foam structure lets it maintains buoyant pressure even after prolonged exposure to water.
This 2-part, pour-in-place expanding polyurethane boat foam reaches full expansion in about five minutes, and can be poured in multiple layers with excellent bonding between layers. The cured foam hardens into shape with minimal shrinkage, is not affected by gas or oil, and resists mold and mildew. Once fully cured, foam can be laminated over with polyester, epoxy, or vinyl ester resins.
- Density: Available in 2 lb. or 6 lb. density foam. The densities refer to the weight per cubic foot (12" x 12″ x 12″) of expanded foam
- Size: 2-Quart Kit and 2-Gallon Kit
- Color: Brown transparent liquid (resin and activator)
- Expansion rate: Flotation foam begins expanding 10-20 seconds after mixing, and will continue to expand for about 5 minutes (in 70-80°F conditions)
- Compliance: Both foam densities have been tested in accordance with the USCG Regulation #33 CFR 183.114.
- Note: Continuous water submersion can eventually lead to loss of buoyancy over a period of years.
- Storage: 33-95°F – DO NOT ALLOW TO FREEZE
Uses for 2 lb. Density Boat Flotation Foam

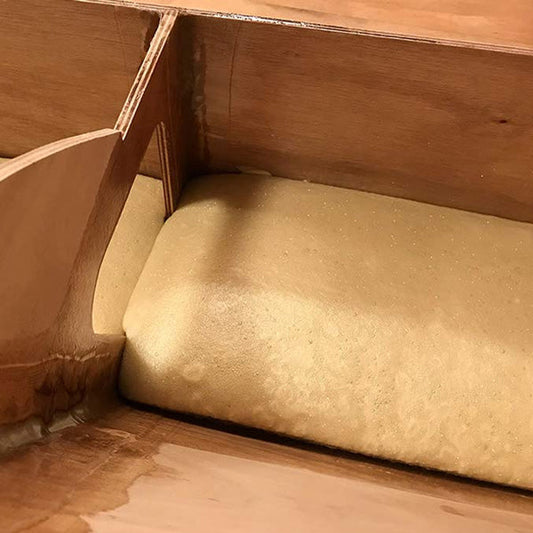

Lightweight foam is perfect for filling non-structural voids

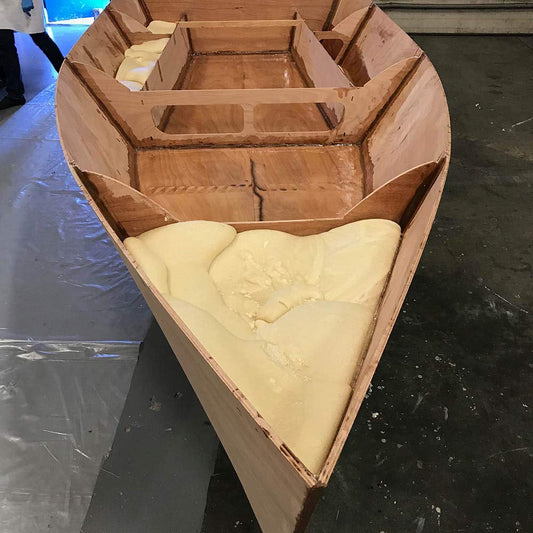

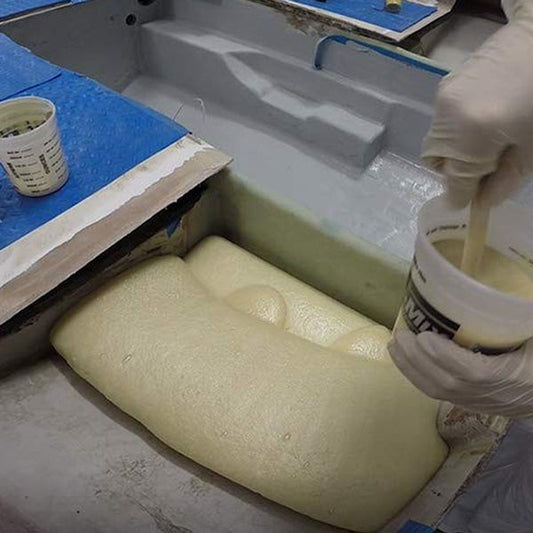

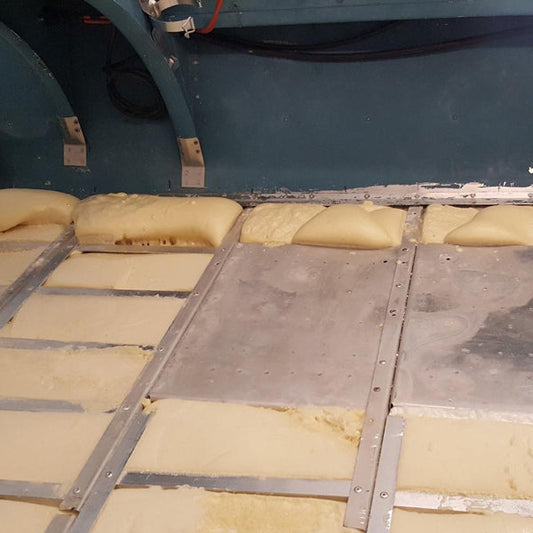

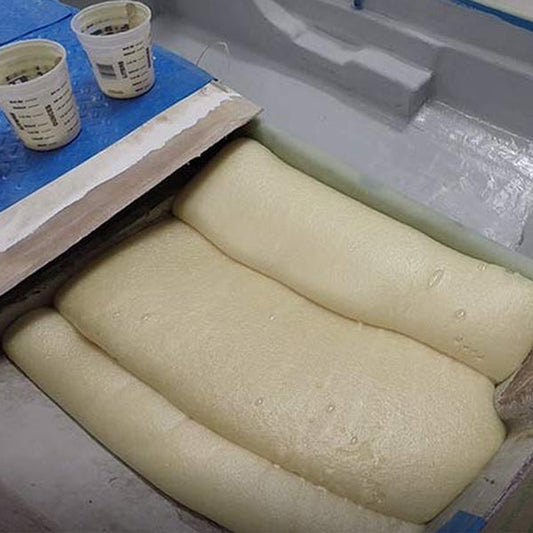

Pour beneath decks and inside cavities to provide buoyancy
Uses for 6 lb. Density Flotation Foam

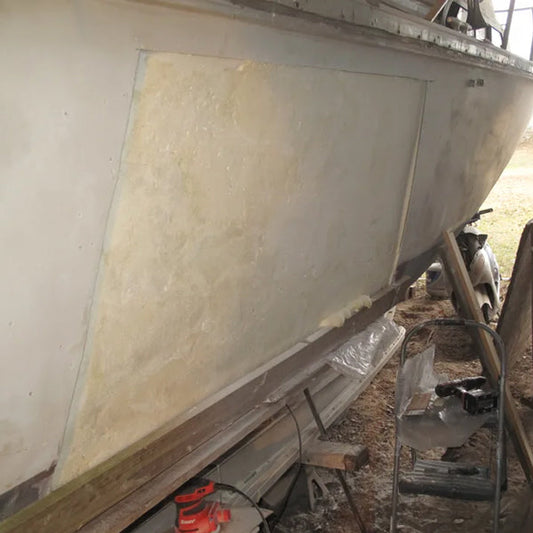

- Higher compressive strength is great for filling cavities to support heavy loads
- Flotation for buoys

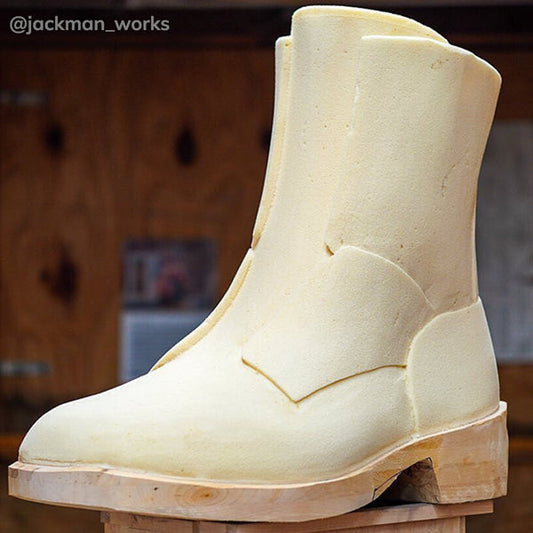

- Creating sculptures and other works of art
TECHNICAL DATA
- Components: 2 (Resin and Activator)
- Volume: The 2-quart kit expands to approximately 2 cubic ft.; the 2-gallon kit expands to approximately 8 cubic ft.
- Flotation Range (Admixed): 75 lbs/qt and 300 lbs/gal
- Compressive Strength: 38 psi
- Application Temperature: 60-85°F or above (75-80°F is optimal for yield and cure/working times)
- Mix Ratio by Volume: 1:1 (1 part resin to 1 part activator)
- Mix Ratio by Weight: 100:109
- Cream Time: 45 seconds
- Gel Time: 235 seconds
- Tack-Free Time: 380 seconds
- Rise Time: 400 seconds
- For nonstructural applications only
- Note: Accurate measuring of resin and activator is extremely critical. All expansion rates and times listed are dependent on temperature. Temperatures below 75°F will lower the expansion rate, which will require more flotation foam.
- Components: 2 (Resin and Activator)

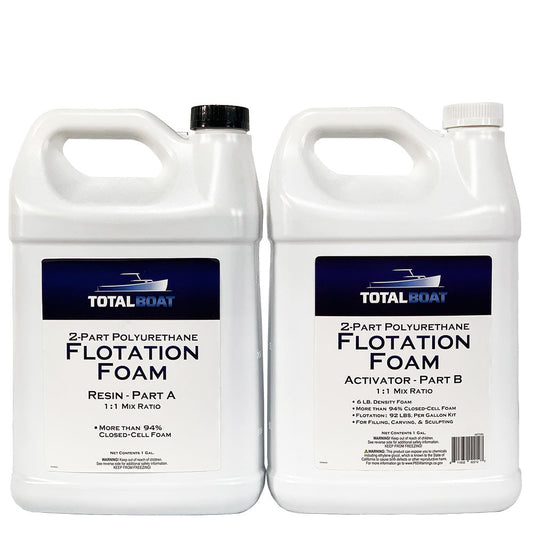

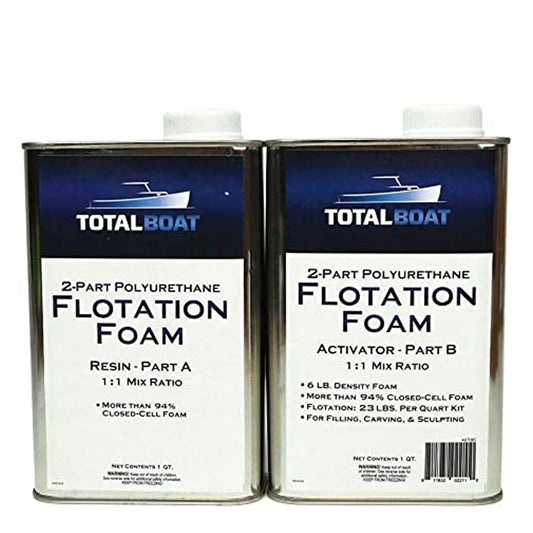

- Volume: The 2-quart kit expands to approximately 3/4 cubic ft.; the 2-gallon kit expands to approximately 3 cubic ft.
- Flotation Range (Admixed): 23 lbs/qt and 92 lbs/gal
- Maximum service temperature: 200°F
- Shear Strength: 220 psi
- Compressive Strength: 55-80 psi
- Tensile Strength: 500 psi
- Mix Ratio by Volume: 1:1 (1 part resin to 1 part activator)
- Mix Ratio by Weight: 1:1
- Cream Time: 65 seconds
- Gel Time: 150 seconds
- Tack-Free Time: 215 seconds
- Rise Time: 200-250 seconds
- Note: Accurate measuring of resin and activator is extremely critical. All expansion rates and times listed are dependent on temperature. Temperatures below 75°F will lower the expansion rate, which will require more flotation foam.
